2MPPT 16kw Deye Hybrid Inverter High Voltage Hybrid Inverter SUN-16K-SG01LP1-EU

Name: 2MPPT 16kw Deye Hybrid Inverter High Voltage Hybrid Inverter SUN16KSG01LP1EU
Brand: Deye
Price: 2828 USD

Quality 2MPPT 16kw Deye Hybrid Inverter High Voltage Hybrid Inverter SUN-16K-SG01LP1-EU for sale

Brand Name : Deye

Model Number : SUN-16K-SG01LP1-EU

Certification : SAA/CE/TUV/VDE/CEI

Place of Origin : China

MOQ : 1

Price : US$+2828-3000+piece

Payment Terms : T/T

Supply Ability : 10000 pieces month

Delivery Time : 10-15workday

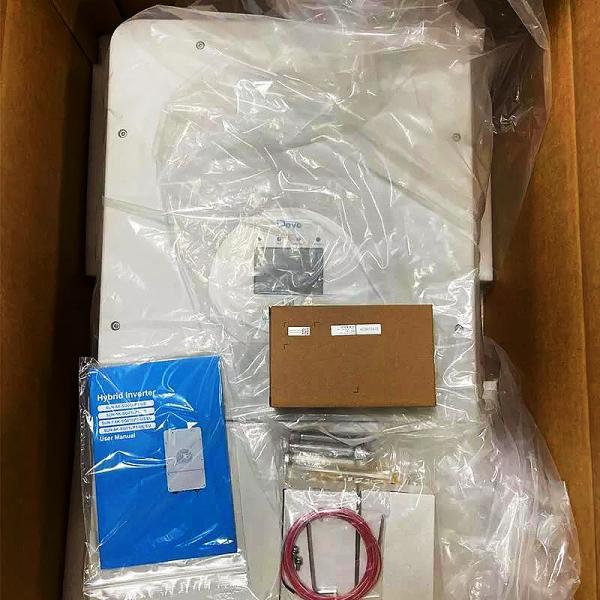

Packaging Details : Each product is individually packaged in a carton or packaged according to your requirements.

Input Voltage : 125V-425V

Output Voltage : 120 / 240Vac, 208Vac, 230Vac

Output Current : 33.4A / 35A

Output Frequency : 50/60Hz

Output Type : Single

Size : 420/233/670 mm

Inverter Efficiency : 99.90%

Warranty : 5 Years

Weight : 32KG

Application : Solar Power System Home

Rated power : 16kW

Type : DC/AC Inverters

Contact Now

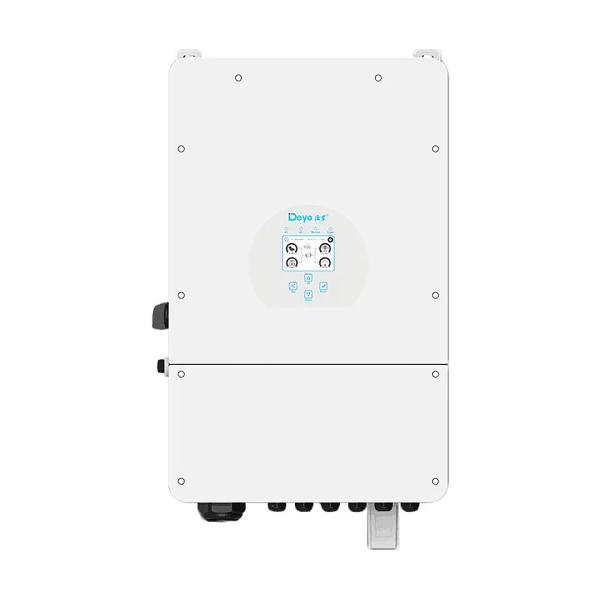

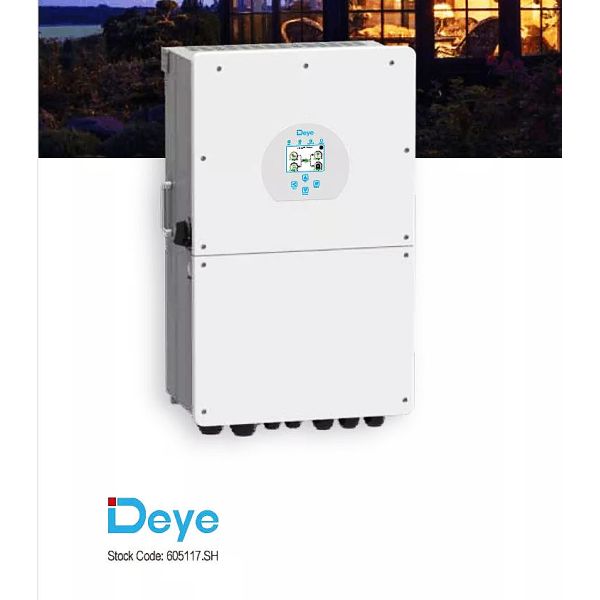

DEYE Single Phase 16KW SUN-16K-SG01LP1-EU Built-in 2MPPTs Hybrid Solar Inverter

Model	SUN-12K-SG01LP1-EU	SUN-14K-SG01LP1- EU	SUN-16K-SG01LP1-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40~60V
Max. Charging Current (A)	220A	250A	290A
Max. Discharging Current (A)	220A	250A	290A
UPS Power (W)	12000	12000	12000
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Yes
Charging Strategy for Li-lon Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	15600W	18200W	20800W
Max. DC Input Voltage (V)	500
Start-up Voltage (V)	125
MPPT Range (V)	150~425V
Rated DC Input Voltage (V)	370
PV Input Current (A)	26+26+26
Max. PV ISC (A)	44+44+44
No.of MPPT Trackers	3
No.of Strings Per MPPT Tracker	2
AC Output Data
Rated AC OutputPower (W)	12000W	14000W	16000W
AC Output Rated Current (A)	52.2	60.9	69.6
Max. Continuous AC Passthrough (A)	100
Peak Power (off grid)	2 times of rated power, 5 S
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage	50/60Hz; L/N/PE 220/230Vac (single phase)
Grid Type	Single Phase
DC injection current(mA)	<0.5% 1n
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	96.50%
MPPT Efficiency	99.90%
Certifications and Standards
Grid Regulation	CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116,IEC 61727,G99,G98 VDE 0126-1-1,RD 1699,C10-11
Safety EMC/Standard	EC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2
General Data
Operating Temperature Range (℃)	45~60°℃,>45°℃ Derating
Cocling	Smart cooling
Noise (dB)	<30 dB
Communication with BMS	RS485; CAN
Weight (kg)	49
Size (mm)	464W×798.4H×300D
Protection Degree	P65
Installation Style	Wall-mounted
Warranty	5 years

2MPPT 16kw Deye Hybrid Inverter High Voltage Hybrid Inverter SUN-16K-SG01LP1-EU

Product Tags:

2MPPT 16kw Deye Hybrid Inverter

SUN-16K-SG01LP1-EU

16kw High Voltage Hybrid Inverter

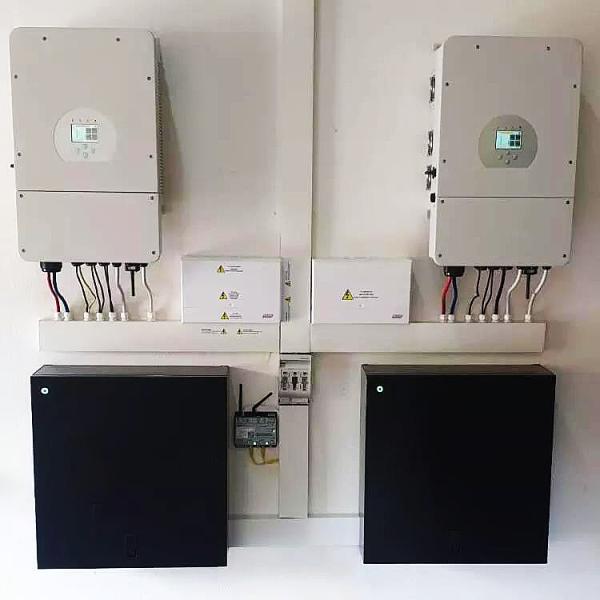

2MPPT 16kw Deye Hybrid Inverter High Voltage Hybrid Inverter SUN-16K-SG01LP1-EU Images
